Specifications
• Model : SF100
• LCD : 2.4-inch TFT (320 x 240) Color Screen
• Fingerprint Sensor : ZK Optical Sensor (500DPI)
• Algorithm Version : ZKFinger VX10.0
• Communication : TCP/IP, RS485, USB Host
• Fingerprint Capacity : 1,500
• Card Capacity : 5,000
• Records Capacity : 80,000
• Access Control Interface : Electric lock, Door sensor, Alarm, Exit button, Doorbell
• Wiegand Signal : Wiegand input & output
• Aux. Input : 1ea for linkage function
• Power Supply : DC 12V/3A
• Operating Temperature : 0 ~ 45°C (32°~113°F)
• Operating Humidity : 20 ~ 80%

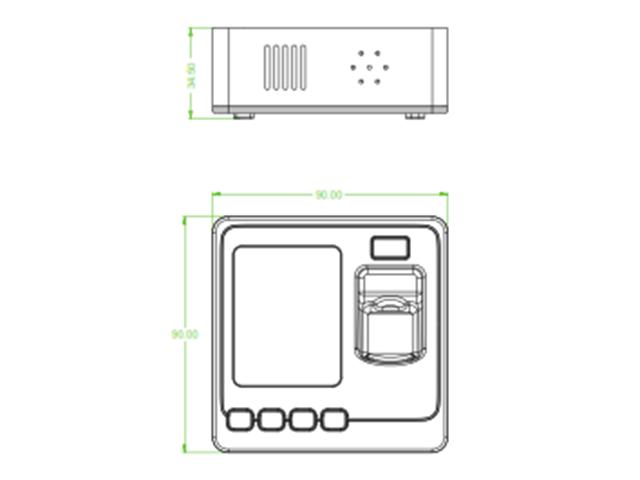

• Dimension(W x L x H) : 90 x 90 x 34.5mm

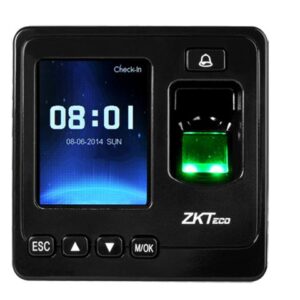

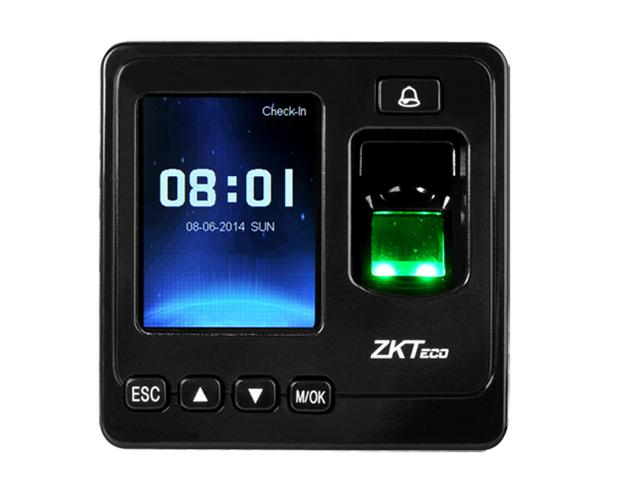

IP Based Fingerprint Reader
IP Based / Network / Standalone Mode Fingerprint Reader
Features
• 2.4-inch color display with graphical UI for easy operation
• Up to 24 user-defined schedules that can be activated on a daily bell alert (optional)
• Prompt audio acceptance or rejection signals for valid or invalid fingers
• Compact and lightweight, small size for 86mm (L) x 86mm (H) socket installation
• TCP/IP or RS485 communication for various networking environments
• Supports USB flash drive for offline data management
• Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
• Up to 15 multi-verification methods to enhance security level
• Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
• Duress Alarm offers effective protection against duress by threats
• Tamper proof switch and multiple alarm outputs
• Multi-languages customizable
